Reliable Supplier China Different Sizes Automatic LPG Cylinders Making Machine LPG Gas Cylinders Production Line

We always think and practice corresponding to the change of circumstance, and grow up. We goal at the achievement of a richer mind and body and also the living for Reliable Supplier China Different Sizes Automatic LPG Cylinders Making Machine LPG Gas Cylinders Production Line, We are trying to get for in depth cooperation with sincere shoppers, attaining a new result in of glory with customers and strategic partners.
We always think and practice corresponding to the change of circumstance, and grow up. We goal at the achievement of a richer mind and body and also the living for China LPG Cylinder Production Line, lpg cylinder making machine, Turnkey Proposal of LPG cylinder making line, With the highest standards of product quality and service, our items have been exported to more than 25 countries like the USA, CANADA, GERMANY, FRANCE, UAE, Malaysia and so on.We have been very pleased to serve customers from all over the world!

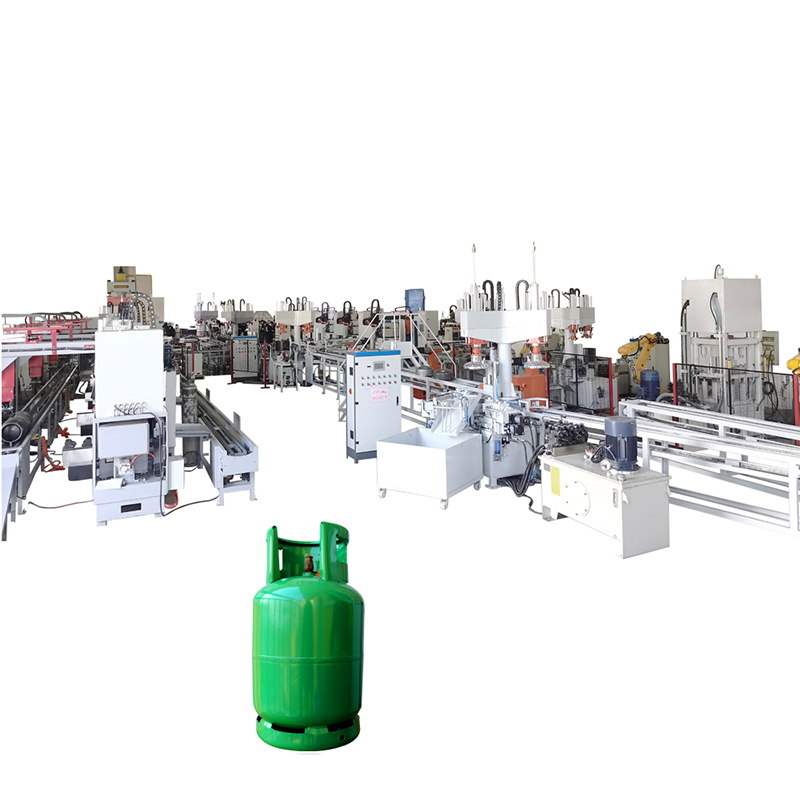

LPG Cylinder Production is composed of several sheet metal forming, surface treatment and testing processes. The process starts with blanking, deep drawing and piercing, trimming and joggling. Next are the welding operations for valve boss, valve guard ring, foot ring and the two halves. The finished cylinder is then heat treated, tested, shot blasted, painted and then the valve is attached and final tested.

The main process steps are summarized below

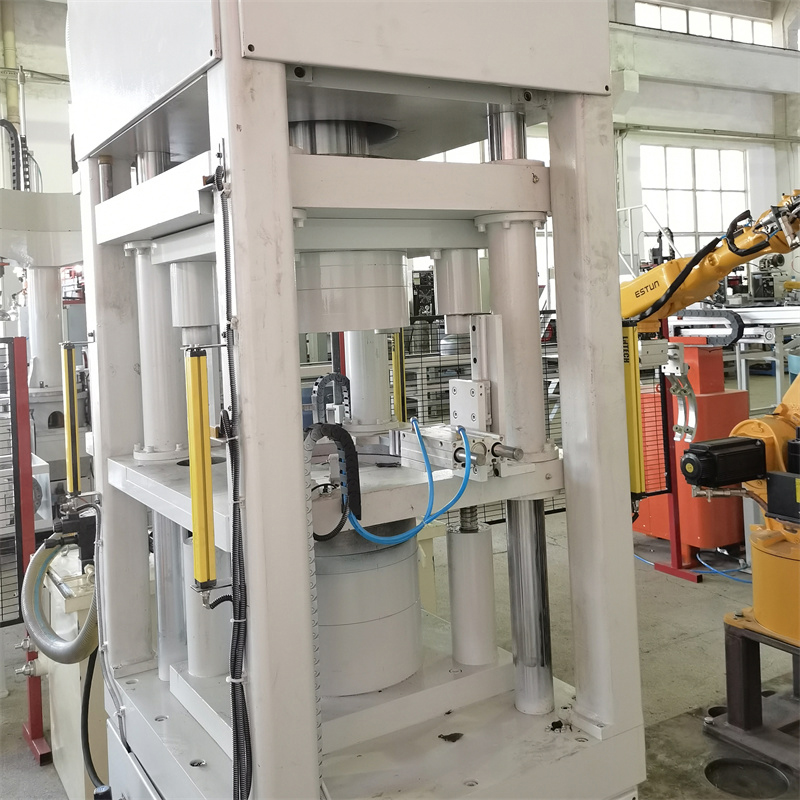

2.1 LPG Cylinder Body Forming Line
2.2 LPG Cylinder Trimming & Beading
2.3 LPG Cylinder Guard Ring Production Line
2.4 LPG Cylinder Bottom Ring Production Line
2.5 LPG Cylinder Welding Line
2.6 LPG Cylinder Quality Controls
2.7 LPG Cylinder Heat Treatment Furnace
2.8 LPG Cylinder Shot Blasting
2.9 LPG Cylinder Metallization Line
2.10 LPG Cylinder Painting Line
2.11 LPG Cylinder Testing Line

Parameter

Feature

1)Production capacity of this production line: 1000pcs/8hours

2)One machine working efficieny: 88seconds/cylinder, elaboration:
welding time: 68 seconds + feeding time: 20 seconds.

3)Operator: 2 persons

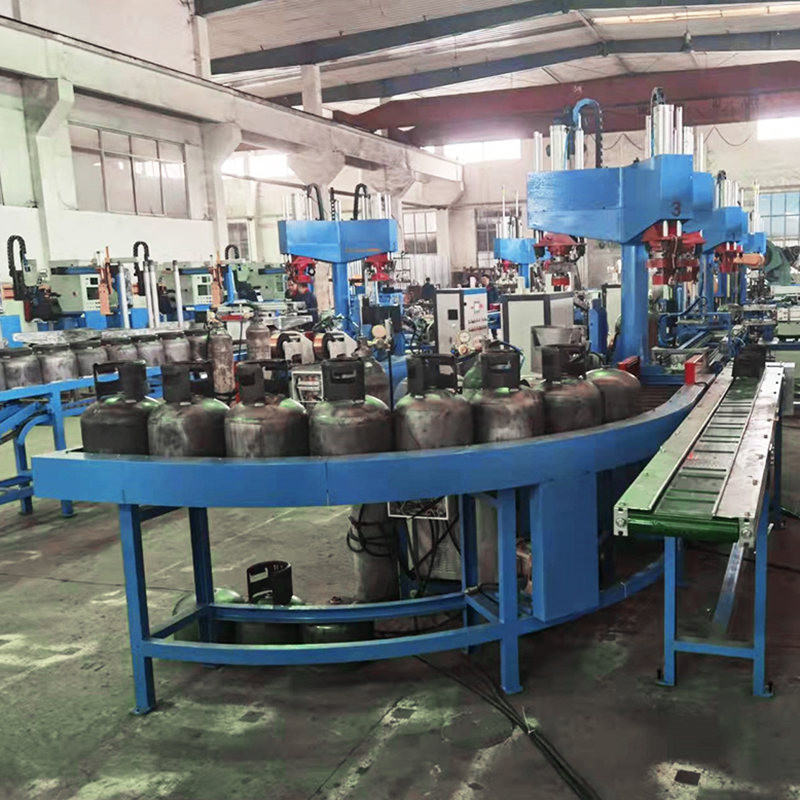

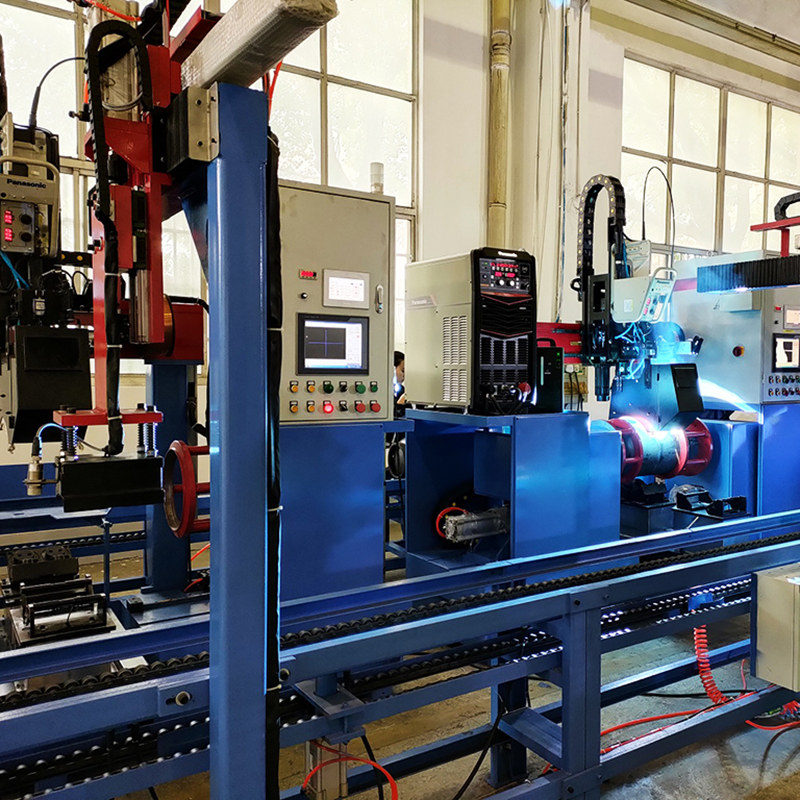

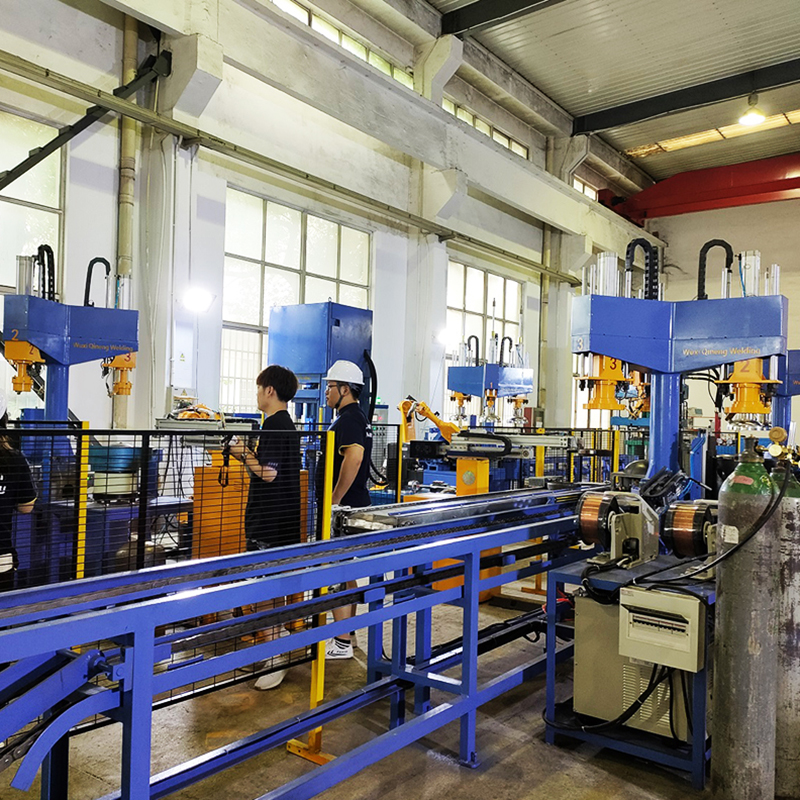

This line including: 3 sets of circumferential welding machine, 3 sets of vertical assembly & spot welding machine. Completed with one inlet conveyor line and one outlet conveyor line, 3 sets of magnetic loading arms, 3 sets of three-station automatic feeding dece, self discharging roller, pneumatic stop mechanism, pneumatic cutting mechanism, therminal limit stop. It adopts magnetic loading arms to catch workpiece and feed workpiece automatically. It adopts three-station automatic feeding device to collect workpiece, load and unload workpiece, cooperated with self discharge roller to convey the welding finished workpiece on the outlet line, and send out the finished workpiece. Auxiliary machine is controlled by automatic circumferential welding machine.

FAQ

What size of LPG cylinder your machine can produce?

6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers’ requirement.

Can you design machines according LPG cylinder technical drawing?

Sure, please send your technical drawing to us.

What are the benefits to choose your machines?

Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:

1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(such as 6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
