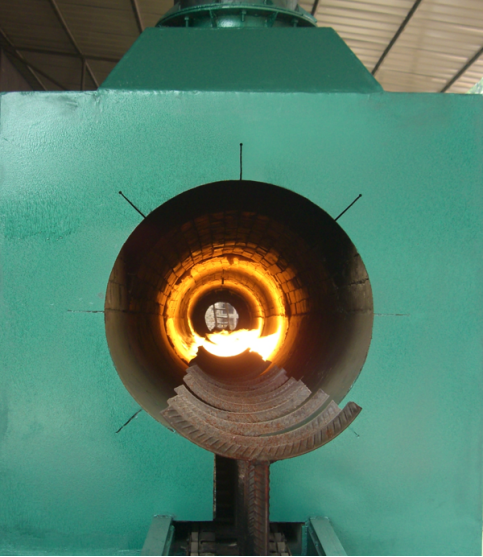

LPG gas heating continuous bright annealing LPG Cylinder Heat Treatment Furnace

After a period of use, the paint on the surface of the cylinder will peel and peel off, thus causing the surface of the cylinder to rust and corrode. After the expiration of use, the surface of the cylinder must be thoroughly cleaned and repainted at the same time as the inspection. At present, due to the use of electrostatic spraying technology, the firmness of the paint film has been further improved, and some paint films are difficult to remove by shot blasting. In order to completely remove the paint film on the steel cylinder, only through the heat treatment furnace, the paint film on the surface of the steel cylinder is burned into charcoal or ashes. This makes it easy to remove any remaining paint from the surface, creating good conditions for blast cleaning and repainting.

Machine name
Heat treatment furnace for LPG cylinder
Production speed
75~300 cylinders/hour
Feeding type
chain drive feeding
Size of cylinder
320*700~420*1250mm
Max. pressure
25Mpa
Max. temperature
600~1200℃
Dimensions
12500*1390*1560mm
Weight
12ton
