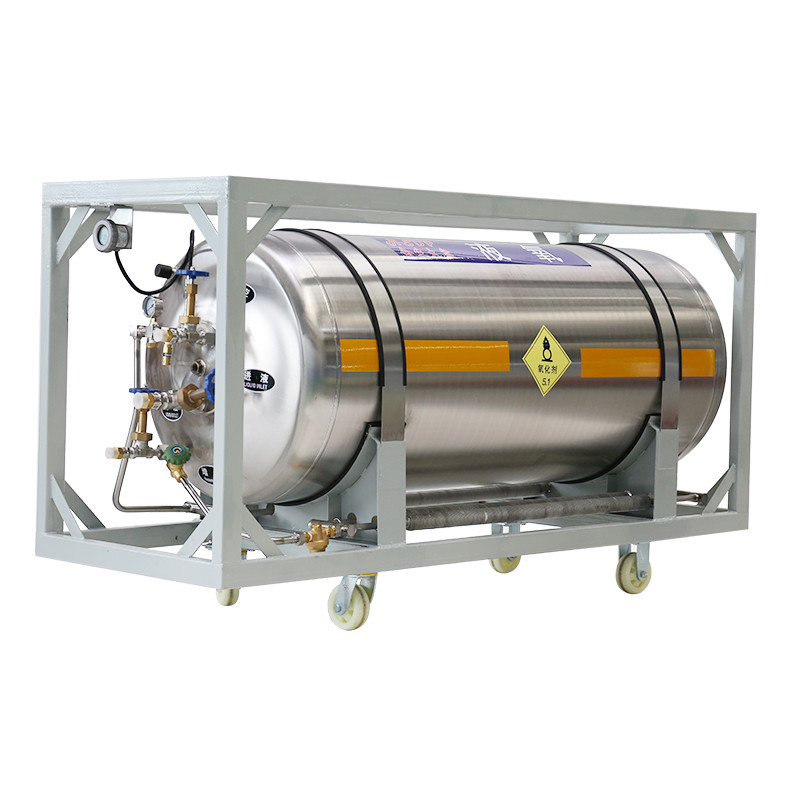

LNG Cylinder Cryogenic Vehicle Tank Gas Cylinder

Short Description:

Product Serious: CDPW500

Volume: 220-330L

Working Pressure: 1.59MPa

Application: Heavy car, Bus

Material: stainless steel

Send email to us

Product Detail

Product Tags

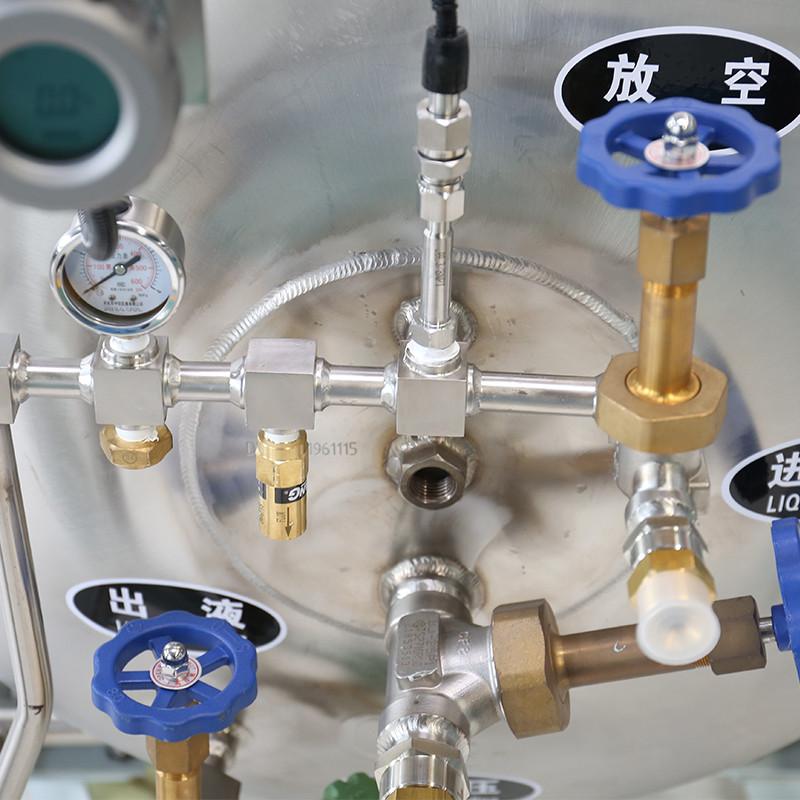

LNG vehicle cylinder (high vacuum multilayer insulation cylinder) by a stainless steel liner, the housing, high vacuum multilayer insulation interlayer, carburetor air temperature, and the water bath vaporizer safety valve piping system, whose unique and advanced adiabatic process, structure Safe and reliable, it is the core equipment of the gas supply system for LNG fuel vehicles such as heavy trucks and intercity buses. The LNG fuel vehicle that uses the gas cylinder as the fuel storage tank not only has the incomparable advantages of fuel vehicles in terms of economic and environmental benefits, but also has high energy density and long driving range, which is of great significance for saving energy and improving urban air quality.

Video

Parameter

Product No.	LNG Cylinder for vehicle
Product No.	CDPW500 -220-1.59	CDPW500 -230-1.59	CDPW500 -240-1.59	CDPW500 -250-1.59	CDPW500 -260-1.59	CDPW500 -275-1.59	CDPW500 -285-1.59	CDPW500 -300-1.59	CDPW500 -310-1.59	CDPW500 -320-1.59	CDPW500 -330-1.59
Dimension mm	Φ556x1514	Φ556x1564	Φ556x1615	Φ556x1666	Φ556x1717	Φ556x1794	Φ556x1844	Φ556x1921	Φ556x1971	Φ556x2024	Φ556x2074
Norminal Volume L	220	230	240	250	260	275	285	300	310	320	330
Effective Volume L	198	207	216	225	234	248	257	270	279	288	297
Net Weight Kg	72	75	79	82	85	90	93	98	102	105	108
Maximum filling capacity Kg	165	170	175	180	185	192	197	204	209	214	219
Weight with gas Kg	237	245	253	262	270	282	290	303	311	319	327
Static evaporation rate%/d	≤2.28	≤2.27	≤2.26	≤2.25	≤2.24	≤2.23	≤2.22	≤2.20	≤2.19	≤2.18	≤2.18
Working pressure MPa	1.59
Testing Pressure MPa	3.18
Design temperature℃	-196
Opening pressure of main relief valve MPa	1.6
Opening pressure of auxiliary safety valve MPa	2.41
Filling medium	LNG（liquified natural gas）
Air flow volume Nm³/h	60~120

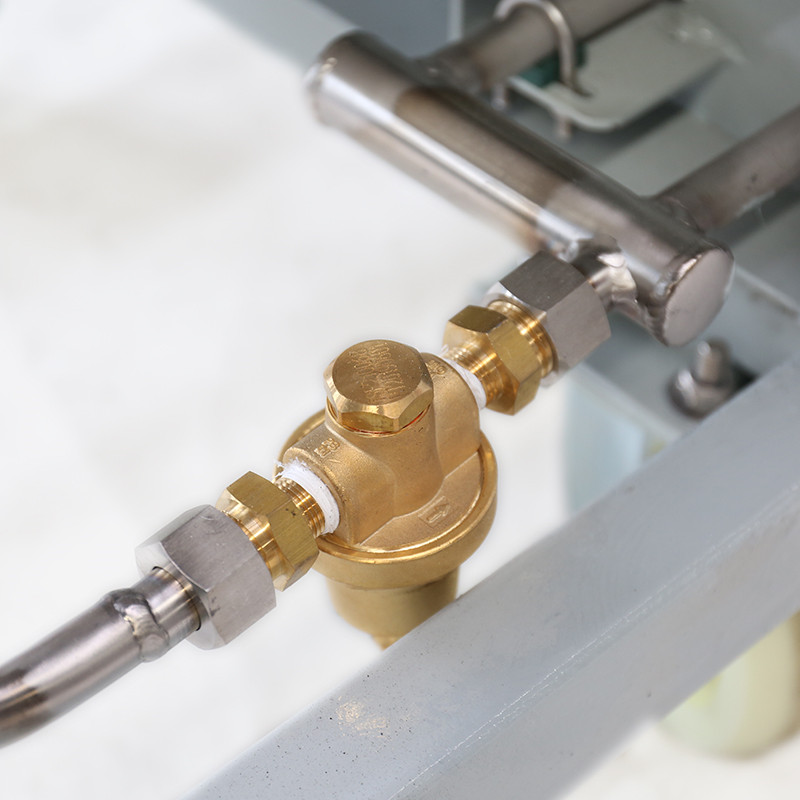

Economic regulator setting value MPa	0.965

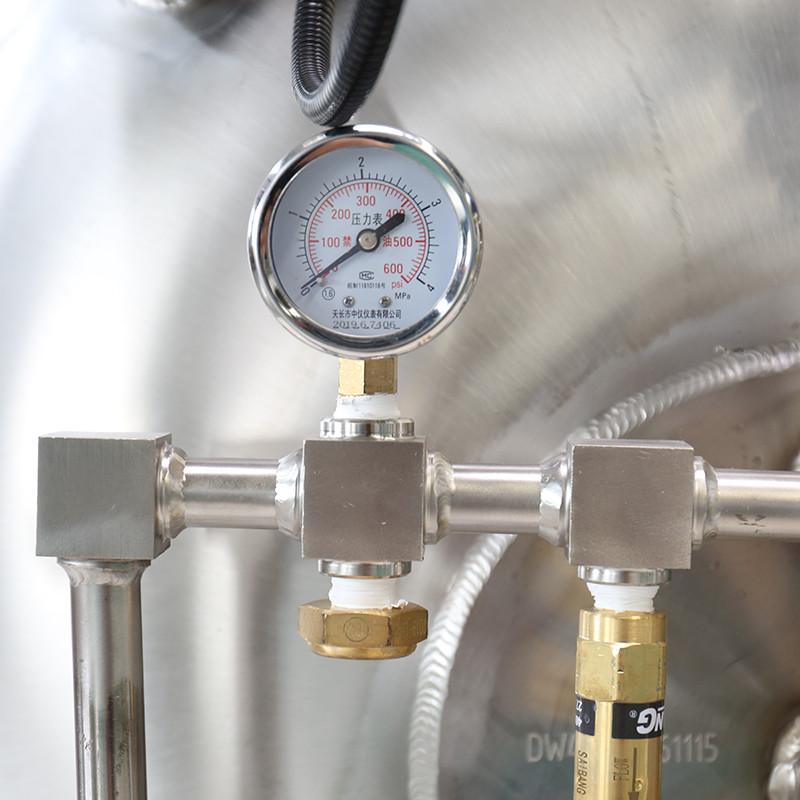

Pressure display method	Pressure gauge and pressure sensor
Surface treatment	Polishing
Level gauge form	Capacitance level gauge
Base structure	Saddle support
Material	Austenitic stainless steel (06Cr19Ni10 or 304)

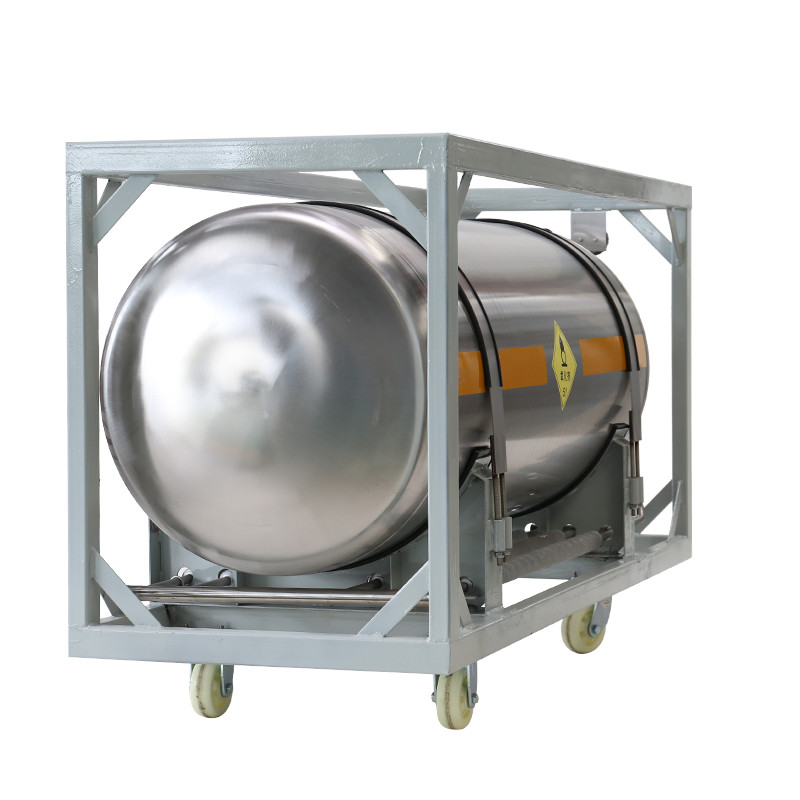

Product details

Product process

We guarantee the quality of our products,if you bought our products,whenever you have any question about our products, please tell us,we will never caused products trouble for any customers.

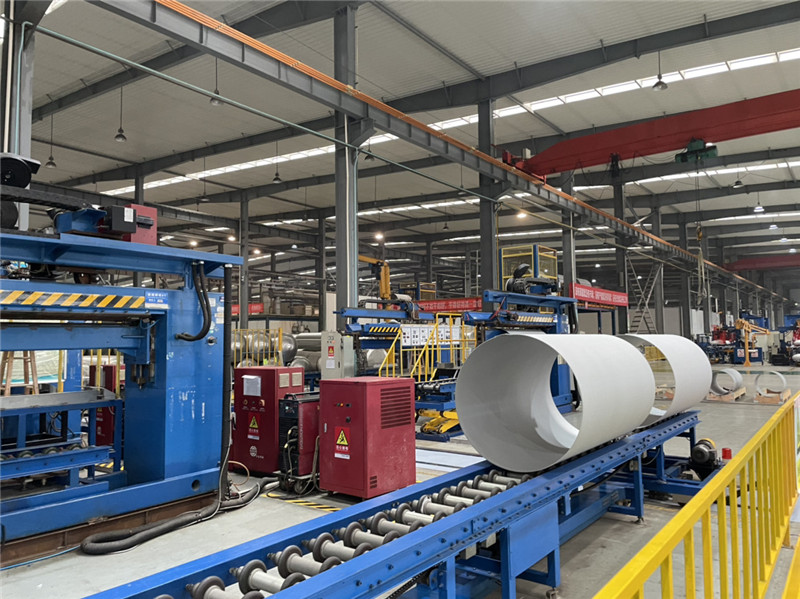

Longitudinal seam welding

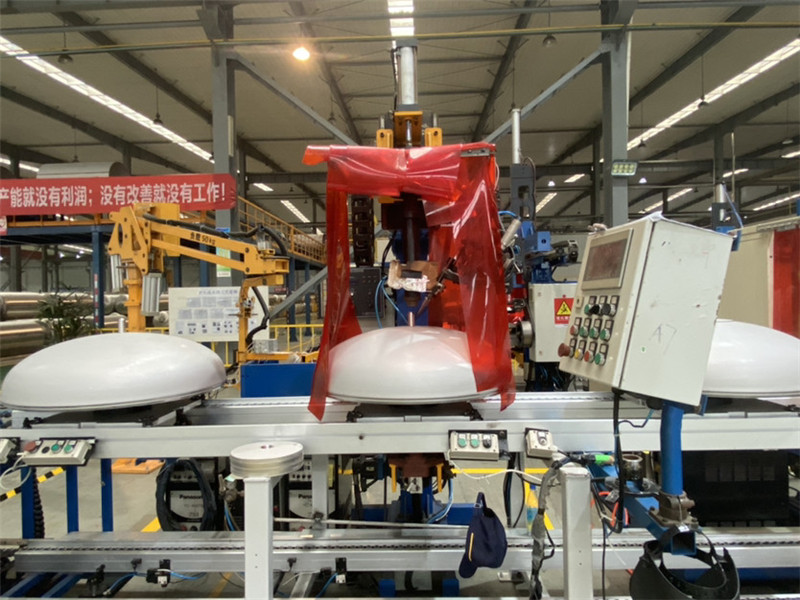

End dish assembly

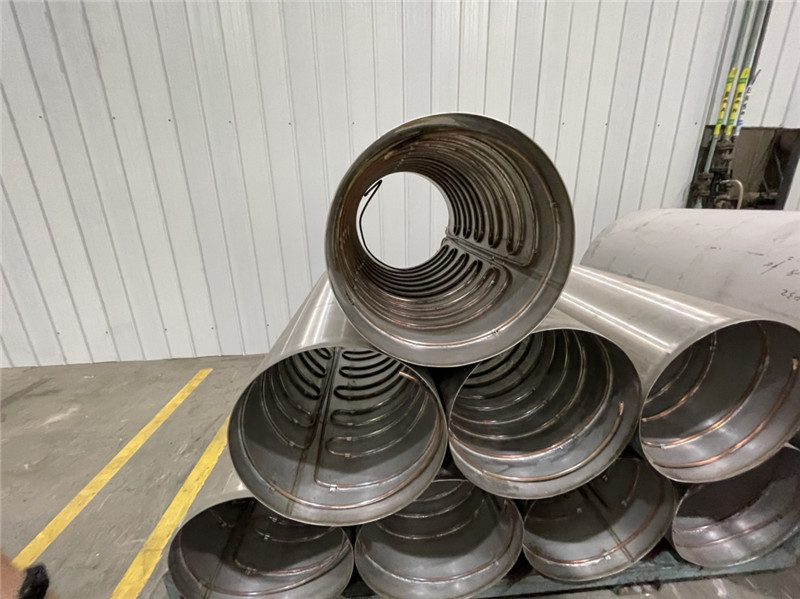

Internal pipeline welding

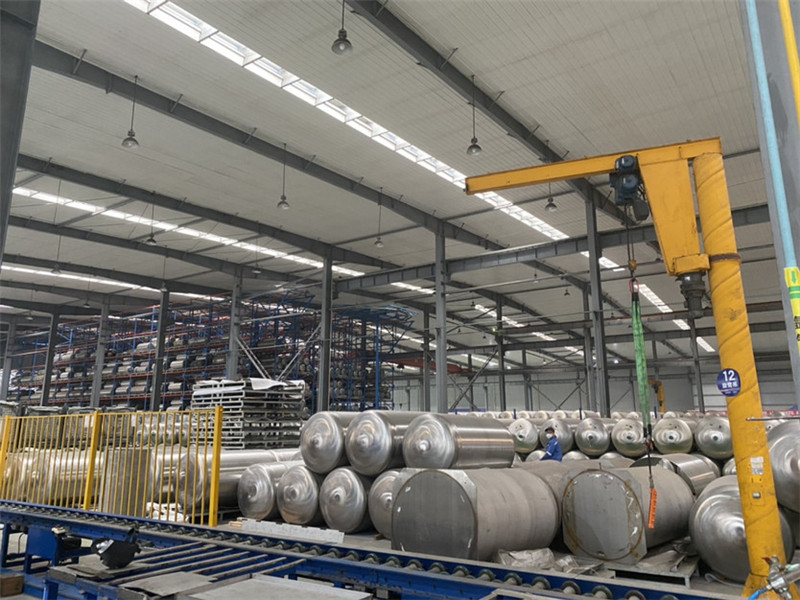

LNG cylinder body production

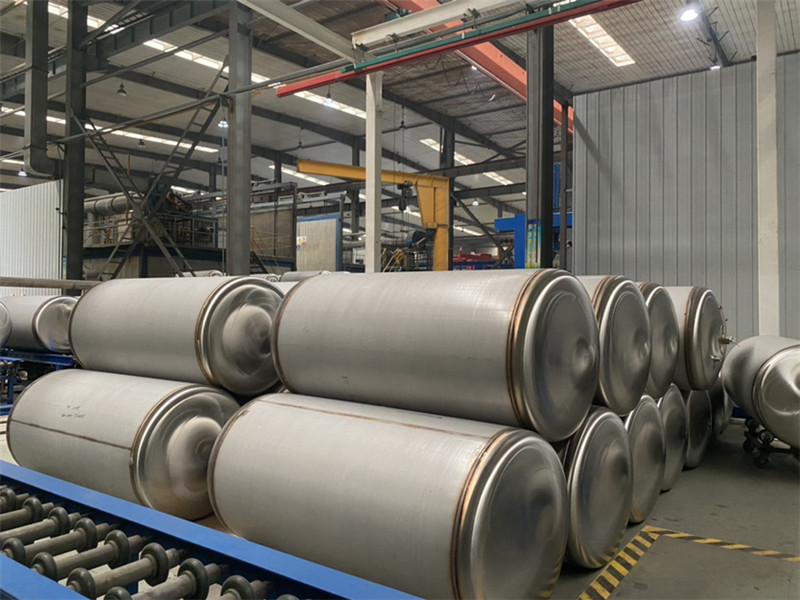

Semi-finished LNG cylinder

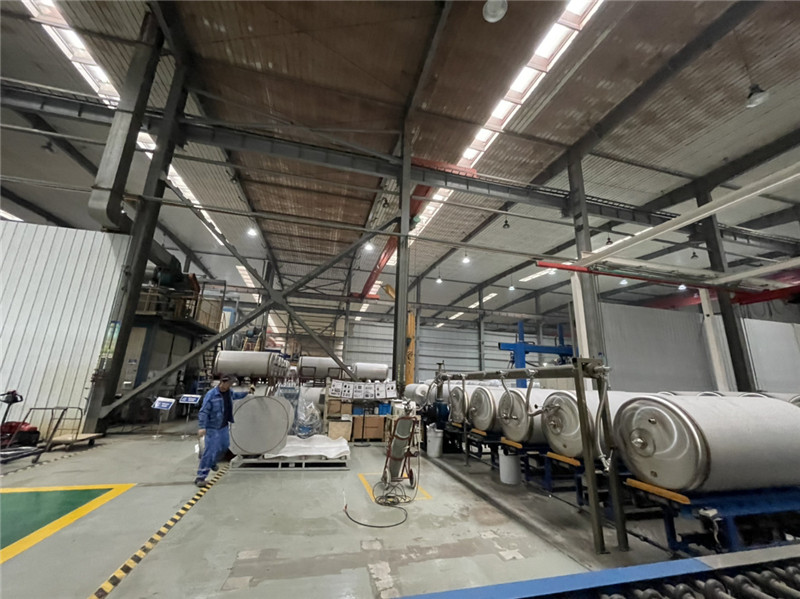

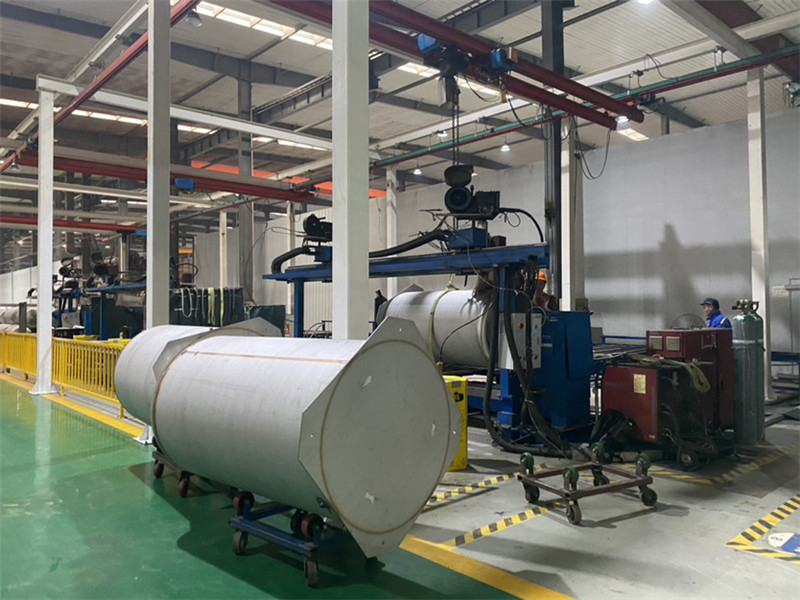

LNG cylinder body welding

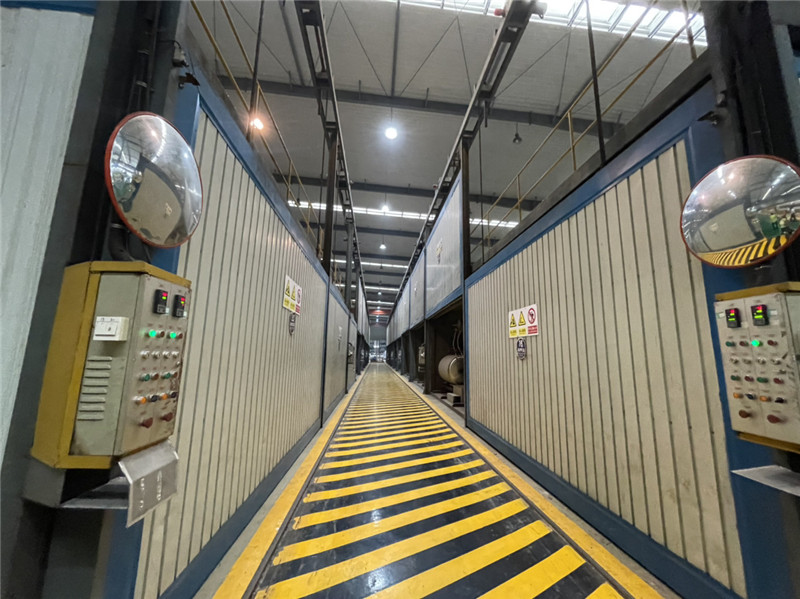

Heat treatment

Product Advantage

①The storage pressure is low, the container is relatively light, the storage capacity is large, and the storage and transportation are safe and convenient;

②High energy density, fast filling time, long driving mileage (600~800km);

③The LNG refueling station has a small footprint, simple construction, low investment, low power equipment energy consumption, and low operating cost;

④ LNG is transported by special tankers, and the construction of the station is not restricted by the natural gas pipeline network, which is convenient for the station layout;

⑤For urban gas operations, replacing CNG to a certain extent can ensure gas supply to pipeline users.

Quality Control

All the manufacturing technology and properties tests are entirely under the supervision of the third-party supervision institute approved by the General Administration of Quality Supervision, Inspection, and Quarantine of China.
