Decoiler Machine, Straightening and Blanking Machine for LPG Gas Cylinder
| Product name | LPG Decoiler,Staight,Blank |
| Application | Forming |
| Usage | Blanking |
| After-sales Service Provided | Engineers are available |
| Raw material | CNG cylinder |
| Power | 110 |
| Prodcution rate | <1000m |
| Process thickness | 5-12mm |
| Rated frequency | 2500 |
| Process length | 400-1050mm |

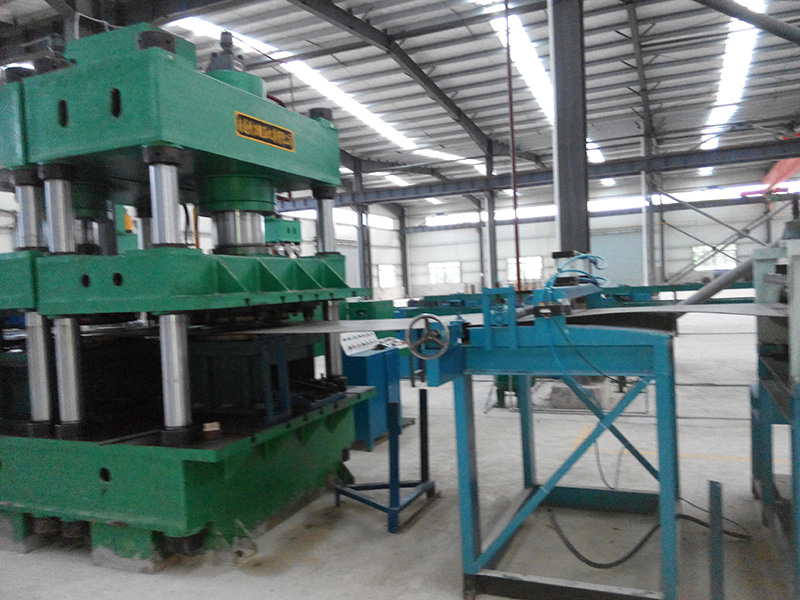

LPG Gas Cylinder Decoiler, Straightening and Blanking Equipment
Specification
1. Motor power: 46KW
2. Nominal force: 6300KN
3. Max working pressure: 25Mpa
4. Speed of slide to go down: 120mm/s
Speed of slide to press: 6-8mm/s
Speed of slide to go up: 55mm/s
5.Table size(left and right): 1500mm
6.Table size(front and rear): 2500mm
7.Weight of hydraulic press is 23ton, of de-coiler is 12ton.
8.Working power for 15kg cylinder is 300ton.

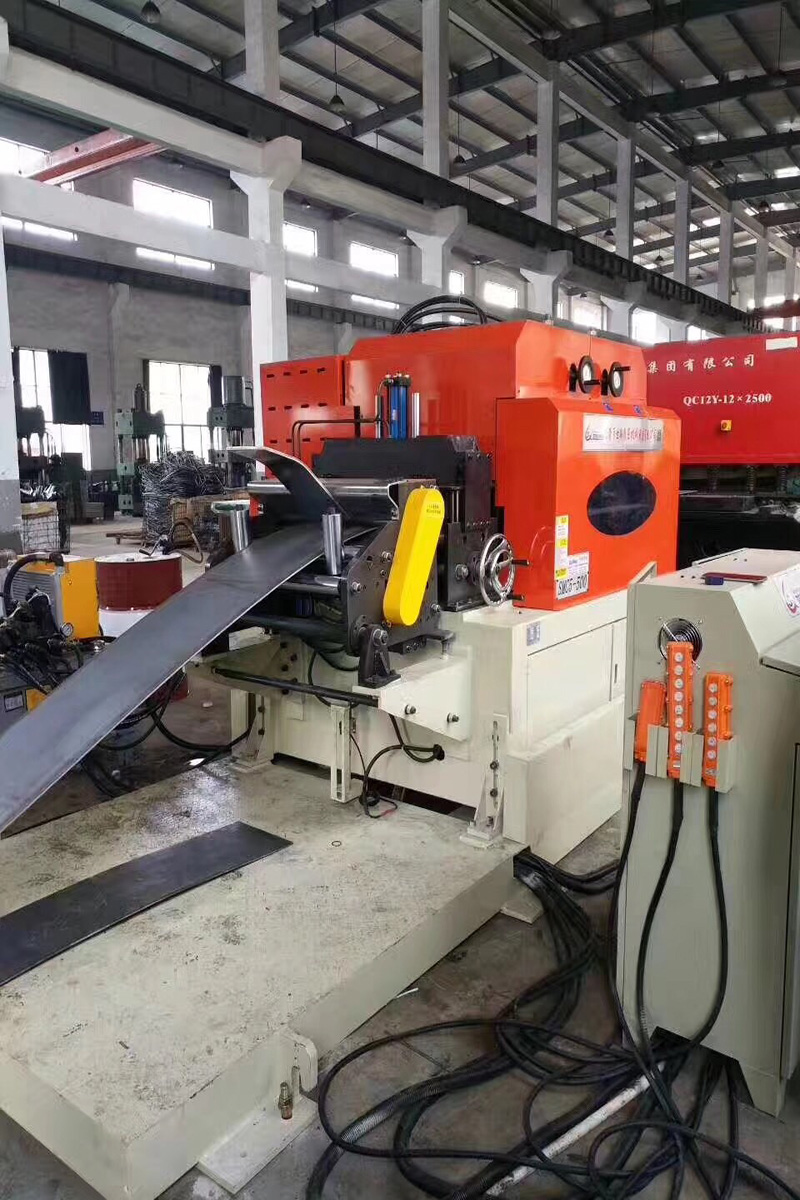

Straightening roller: ¢90(Up 5 low 4), with one set support roller
Material conveyor: ¢115*1 set, with one set support roller
Coil weight: Max. 15Ton
Feeding direction and height can be adjustable.
Straightening adjust: servo driven, digital show.
Rack motor: 7.5KW, servo motor: 7.5KW
Feeding trolley working table size: 1250*800mm
Feeding trolley lifting distance: 350mm(suitable for 1000-1500mmOD coil)
Raw material specification
Raw steel plate
1. Thickness 2-4mm
2. Width : ≤1170mm. Can be designed according to customers' requirement.
3. Inside Diameter of steel coil: 450-800mm
4. Outside diameter of steel coil: ≤1800mm
5. Weight of steel coil: ≤25ton
Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons (excluding hydraulic system and loading and unloading systems).
2. The cylinder body is positioned at the front, the electronic encoder is positioned accurately, the rear is positioned with a screw drive, and the rear cylinder pushes the front The sliding seat moves back and forth on the guide rail.
FAQ
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: What's the size of Steel Round piece you are using?
A: We can make recommendations according to your needs.
Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG
machinery with more than 25 years of experience and a strong professional R & D team
Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...
We need to know the following information to make the quotation to you:
1. The technical drawing of the cylinder.
2. Daily capacity.
