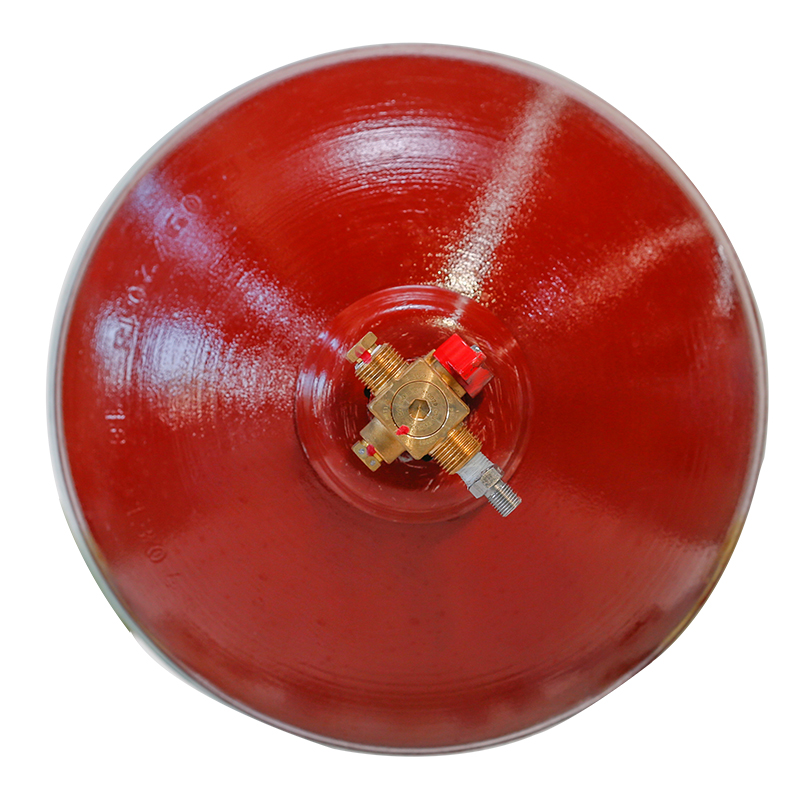

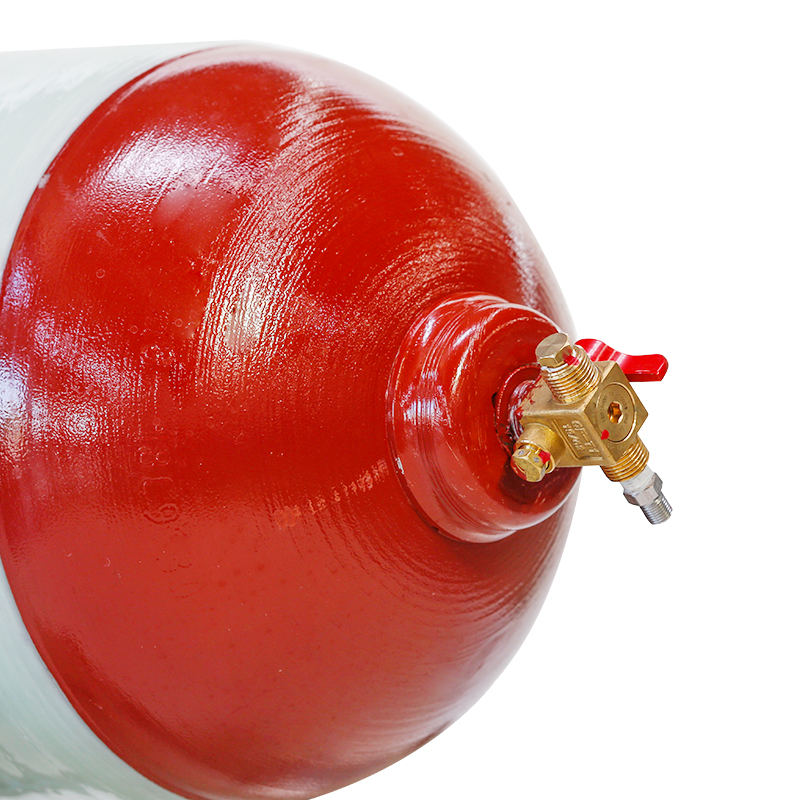

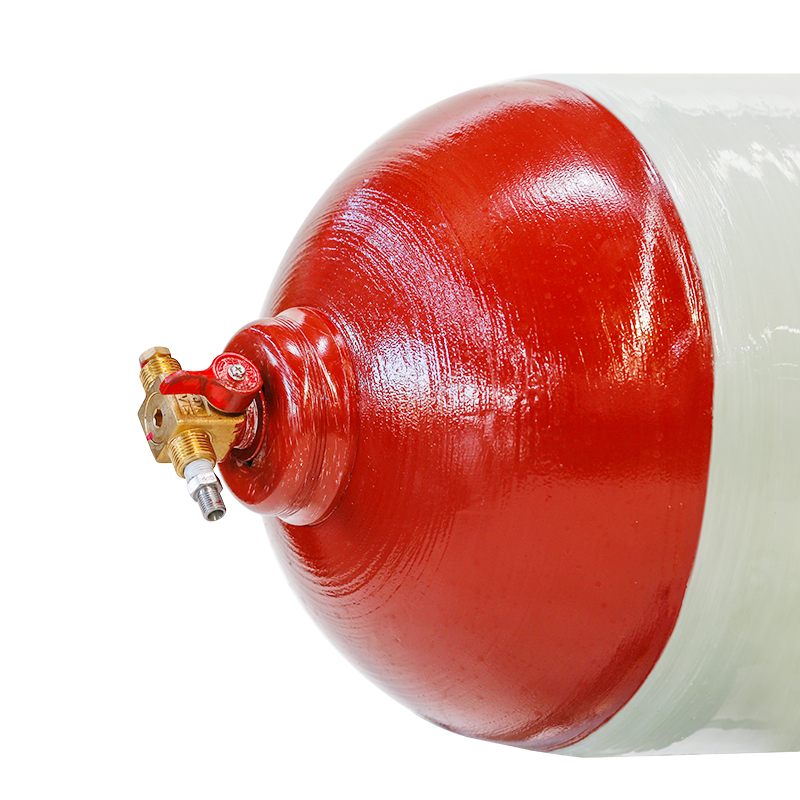

Compressed φ325 CNG-2 Wrapped Cylinder for Vehicle
CNG-2 is a composite gas cylinder with steel or aluminum lining and a barrel reinforced with long fibers impregnated with "hoop winding" resin. Compared with ordinary CNG steel cylinders, it has the advantages of light weight and large capacity.
Parameter
|
Technical parameters of CNG wrapped cylinders for Vehicle |
|||||||
| Standard：GB/T24160、ISO11439:2013、ECE R110 | |||||||
|
Product No. |
Internal OD |
Volume |
Length |
Weight |
Wall thickness |
Working Pressure |
Material |
|
CNG2-G-325-45-20B |
ø325(Internal) ø334(External) |
45 |
735 |
36 |
4.6 |
20 |
30CrMo |
|
CNG2-G-325-50-20B |
50 |
792 |
40 |
||||
|
CNG2-G-325-55-20B |
55 |
857 |
42 |
||||
|
CNG2-G-325-60-20B |
60 |
921 |
46 |
||||
|
CNG2-G-325-65-20B |
65 |
985 |
50 |
||||
|
CNG2-G-325-70-20B |
70 |
1049 |
52 |
||||
|
CNG2-G-325-75-20B |
75 |
1113 |
55 |
||||
|
CNG2-G-325-80-20B |
80 |
1178 |
59 |
||||
|
CNG2-G-325-85-20B |
85 |
1243 |
61 |
||||
|
CNG2-G-325-90-20B |
90 |
1306 |
67 |
||||
|
CNG2-G-325-100-20B |
100 |
1434 |
71 |
||||
|
CNG2-G-325-110-20B |
110 |
1563 |
78 |
||||
|
CNG2-G-325-120-20B |
120 |
1691 |
85 |
||||
Production Process
In order to ensure the quality of our products, we strictly control every process of production.
Production Site
Annual output of 360,000 CNG cylinders.
Quantity Control
Top quality raw material will be adopted;
All the cylinders are manufactured according to ISO standard.
Each cylinder will be tested according to ISO11439 standard;Lot reports by company or third party inspection agency will be provided when delivery.
Application
Our products enjoys the advantages of high pressure ,large capacity ,light weight ,safe and reliable. It is widely used in cars , trucks and buses.
Package&Delivery
Our regular packaging is carton, wooden box, iron frame. If you have special requirements, we can also negotiate.
FAQ
We have been in this field for more than 20 years. Our products have been sold almost all over the world. We allow 3rd party inspections before shipment ( on buyer's account) And we can supply certificate of quality accordingly.
In addition, we have six equipments to test material and cylinder:
1. spectrum analyzer to detect chemical analysis;
2. mechanical function to make tension test and bending test;
3. X-ray silent detection to inspect circumferential weld;
4. Hydraulic bursting test;
5. Hydraulic testing;
6. Air tightness test.
In our acceptable range, we can offer one or two free samples for you if you pay for the freight. We will return the freight if you make an order in future.
In general, it will take 35-60 days after receiving deposit. The specific delivery time depends on the items and quantity of your order.
Small quantity negotiable, one or more containers would be appreciated.
GB/T24160、ISO11439:2013、ECE R110
