China Gold Supplier for China High Pressure CNG/ Fire Fluid Extinguisher Cylinder Bottom End Hot Heat Spinning Forming Machine
HFD180 Thermal-Spinning Machine include: Intermediate Frequency Heating Equipment, Thermal-Spinning Forming Machine, Bottom Pushing Machine, etc. Total power for Complete Equipment is about 200Kw, installation area is 13000 x 8000mm
-
Popular Design for China High Pressure Seamless Steel Oxygen Nitrogen Hydrogen Argon Helium CO2 Gas Cylinder CNG Cylinder Hot Spinning Machine
HFD180 Thermal-Spinning Machine include: Intermediate Frequency Heating Equipment, Thermal-Spinning Forming Machine, Bottom Pushing Machine, etc. Total power for Complete Equipment is about 200Kw, installation area is 13000 x 8000mm
-

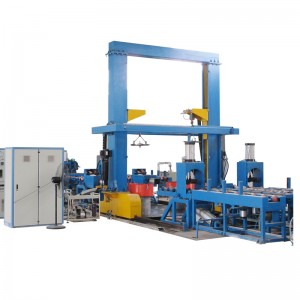

Automatic Gantry External Hydro-Static Testing Machine with Water Jacket Type
Length of gas cylinder：800~2700mm
Diameter：279~540 mm
Volumn：40~310L
Place of Origin：China
The weight of the gas cylinder：≤150Kg
Accuracy of Pressure Sensor：0.25%
Capacity：16-20 PCS/Hour/Set
Accuracy of Electronic Scale：200g -

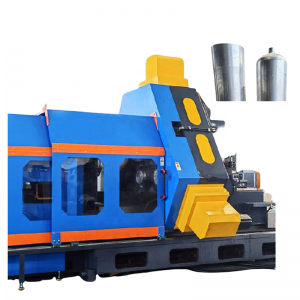

High Speed Automatic Aluminum Tube End Spinning Machine for seamless cylinder
The cylinder blank is generally prepared by the reverse extrusion process. Due to the limitation of the process, the wall thickness is generally relatively thick, usually about 18-24mm, while the gas cylinder requires a wall thickness of about 5-7mm, and the general thickness of the bottle mouth closing part needs to be 10- 12mm, so a strong spin is required for thicker blanks.
-
High Pressure Seamless/CNG cylinder Inner Sand Blasting Machine Outer Shot Blasting Machine~
Sandblasting is a method of using compressed air to blow out quartz sand at high speed to clean the surface of parts.The main function of sandblasting is to remove rust and scale on the surface, such as parts after heat treatment.Sandblasted sand, which is just river sand, is no different from that used in construction, except that the sandblasted sand is screened, contains less mud, and has a particle size specification.
-

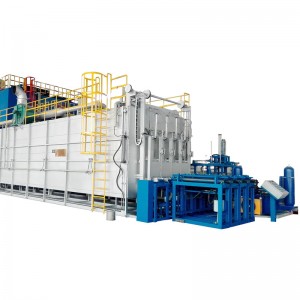

200 pcs Daily Output CNG Cylinder Heat Treatment Furnace Line
Consider different requirements, we mainly prompt two machine configuration 100 cylinders/8hrs & 300 cylinder/8hrs which could be selected by customers to fit for the budget.The line is comprised of three main parts :
1- Hardening furnace
2- Automatic quenching tank
3- Tempering furnace
Capable of charging CNG cylinders in different sizes and weights
Continuous with adjustable motion pace
Gas fired heating system
No direct contact of flame with the surface of treated parts
-

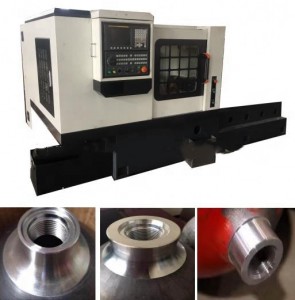

CNC Seamless Cylinder Thread Lathe machine
Seamless cylinder Tube neck drilling machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming. Single station device is adopted for input and output materials (semi-automatic); The work piece clamping adopts the front top bowl positioning.
-
High Pressure Steel CNG Cylinder/ Long tube Forming/ Closing Machine
HFD180 Thermal-Spinning Machine include: Intermediate Frequency Heating Equipment, Thermal-Spinning Forming Machine, Bottom Pushing Machine, etc. Total power for Complete Equipment is about 200Kw, installation area is 13000 x 8000mm
-

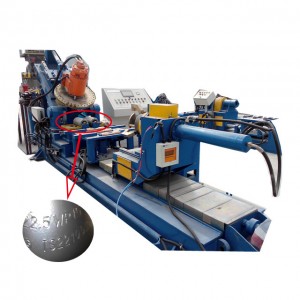

Automatic CNG Cylinder Neck Coding/Marking Machine, Seamless Oxygen Cylinders Embossing Machine
Material: 34CrMo4(35CrMo)、37Mn、30CrMo Hardness of CNG cylinder after quenching and tempering HB248—300 Cylinder diameter range φ219mm- φ406mm Length range 600mm–2200mm Thickness range 5-12 mm Weight of cylinder ≤120Kg -
