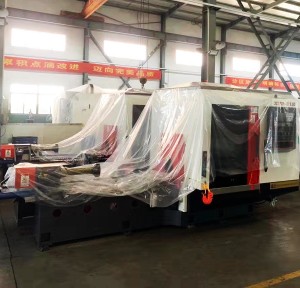

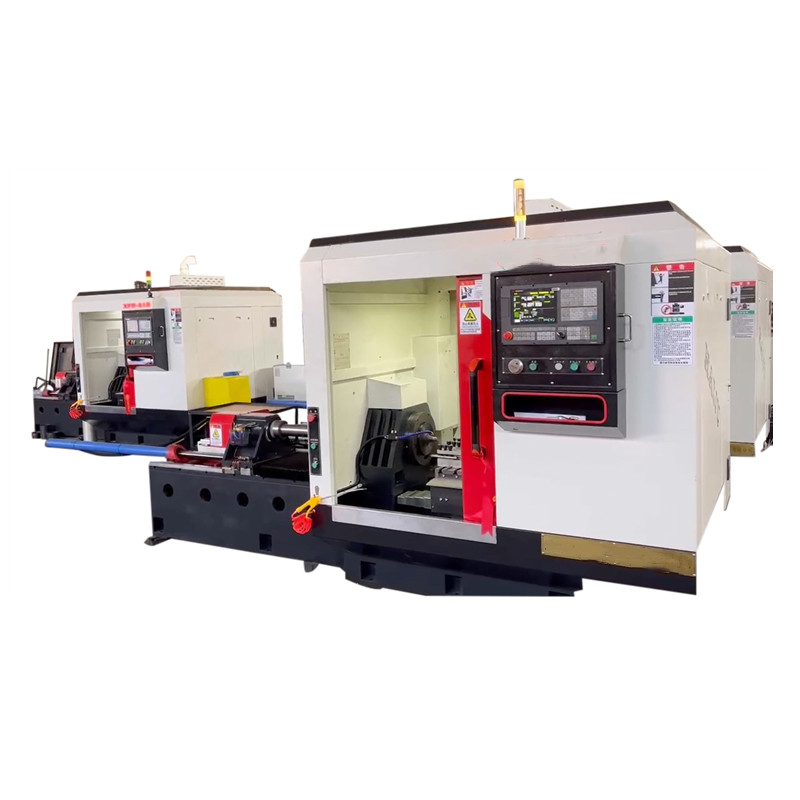

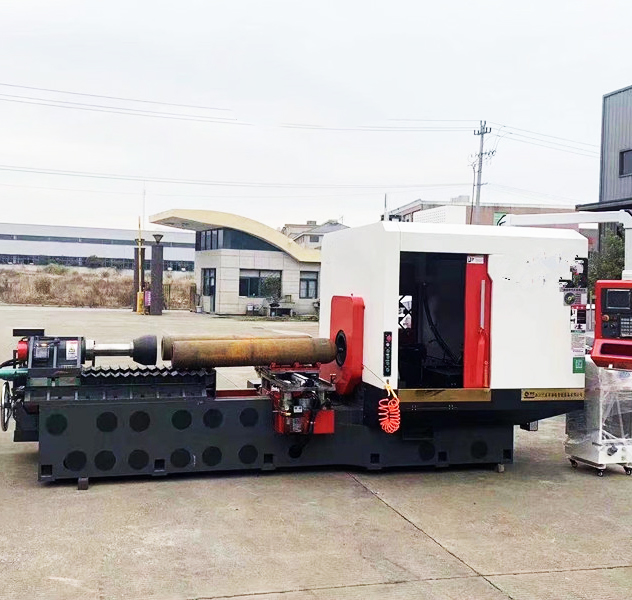

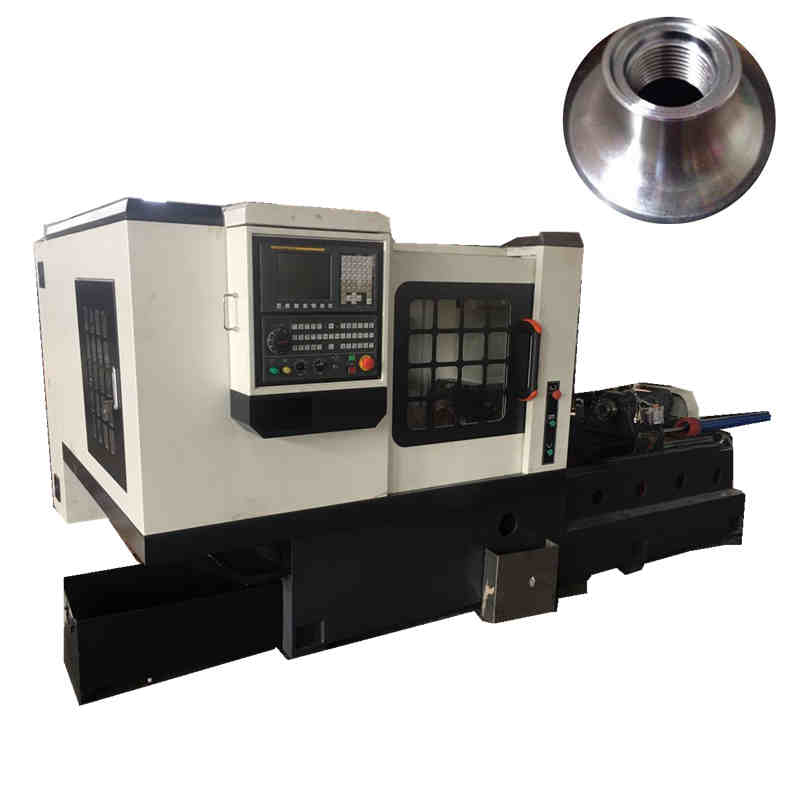

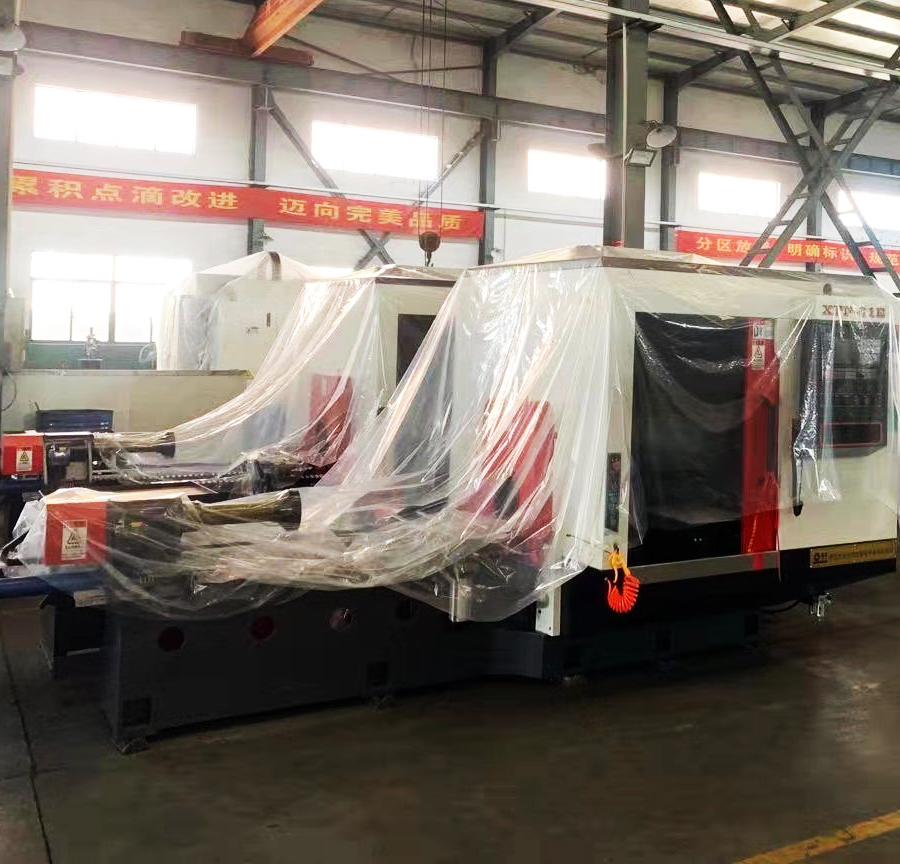

CNC Seamless Cylinder Thread Lathe machine
Machine processing
Step 1.Radial facing, cylindrical turning---finish the end face by the outer circular knife and turning of outer chamfer
Step 2.Inside hole--adopts lathe processing of inner hole of inner hole cutter
Step 3.Threading --adopts thread tool
Feature
1.Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas
2. Adopted high multi-layer insulation method to ensure the low evaporation rate.
3. Inner vaporizer provides a 10Nm3/h stable continuous gas.
4. Solar installation use in the priority of gas-pressure and gas space.
5. Adopt the international CGA standard tie-in and all the valves installed imported from USA(Rego)
6.Unique design of damping ring meets the needs of frequent transportation.
7.Suitable for electronics, research, chemical industry, welding, and LNG supply industries.
Application

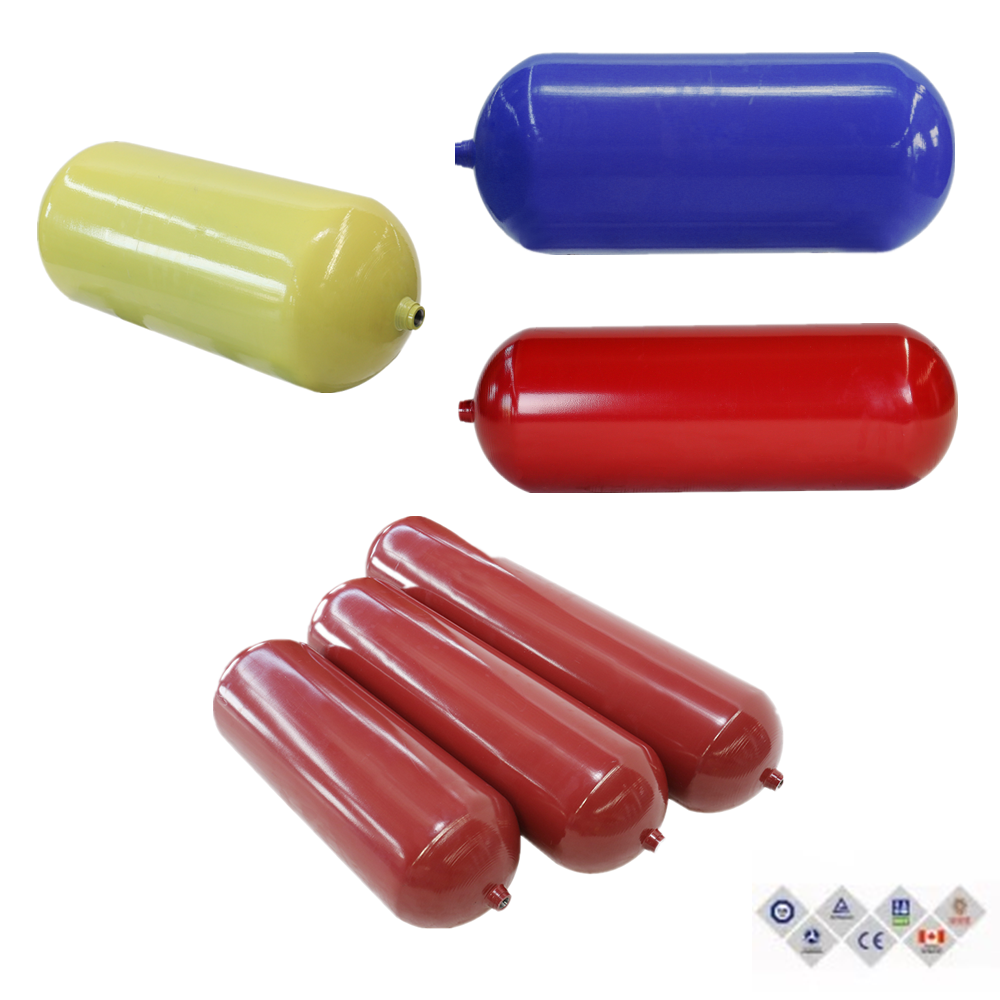

CNG cylinder

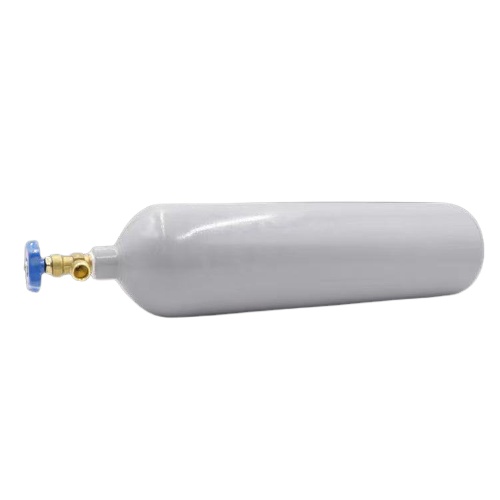

Oxygen Cylinder
long tube Trailer

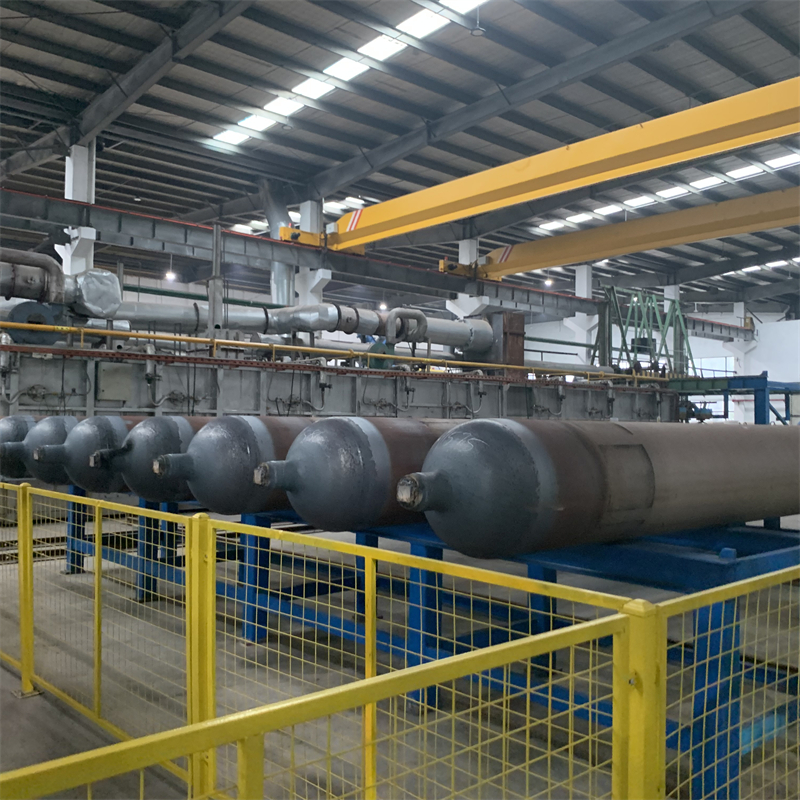

Finished product
Packing and delivery
| Item | Data | |
| Diameter range | φ141mm--φ356mm | |
| Length range | 300mm-2000mm | |
| Main motor power | 5.5KW converter motor | |
| Converter motor | z-axis : 10M/MIN | X Stroke:10M/MIN |
| Tool holder | horizontal structure | |
| Range of spindle speeds | 100-1000r/min |
