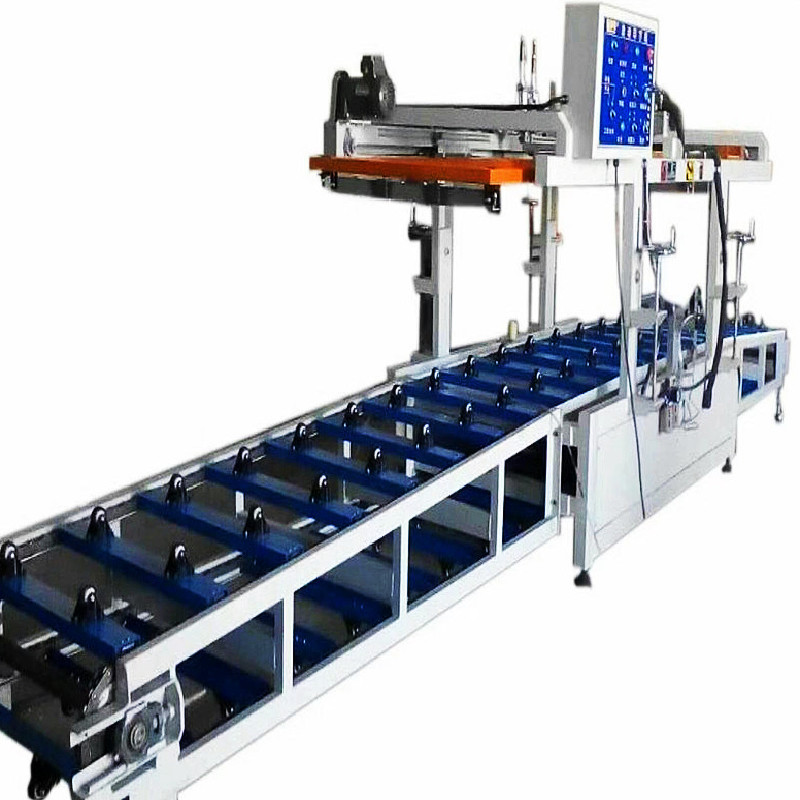

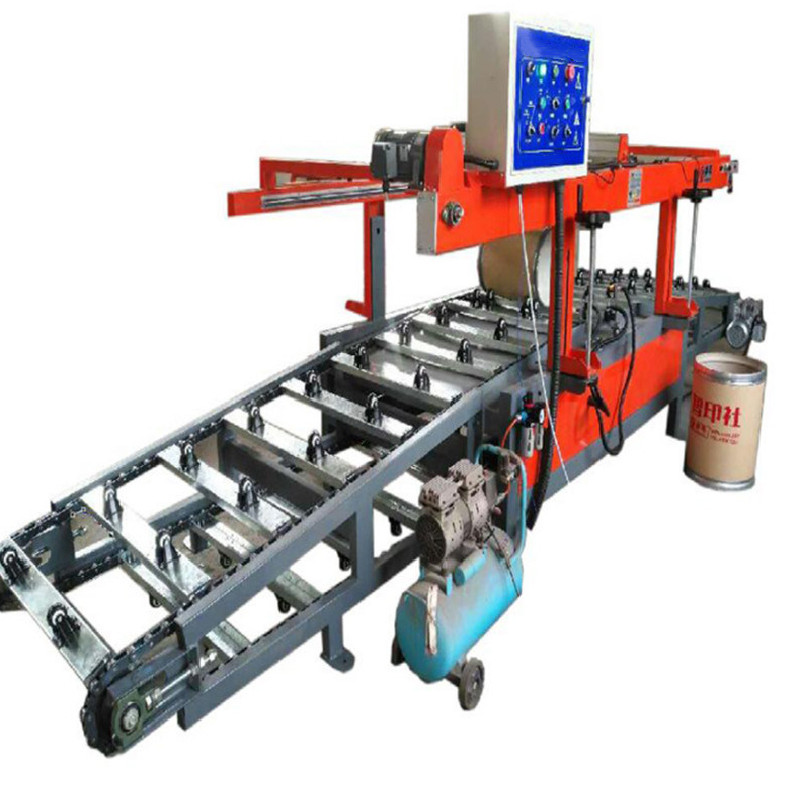

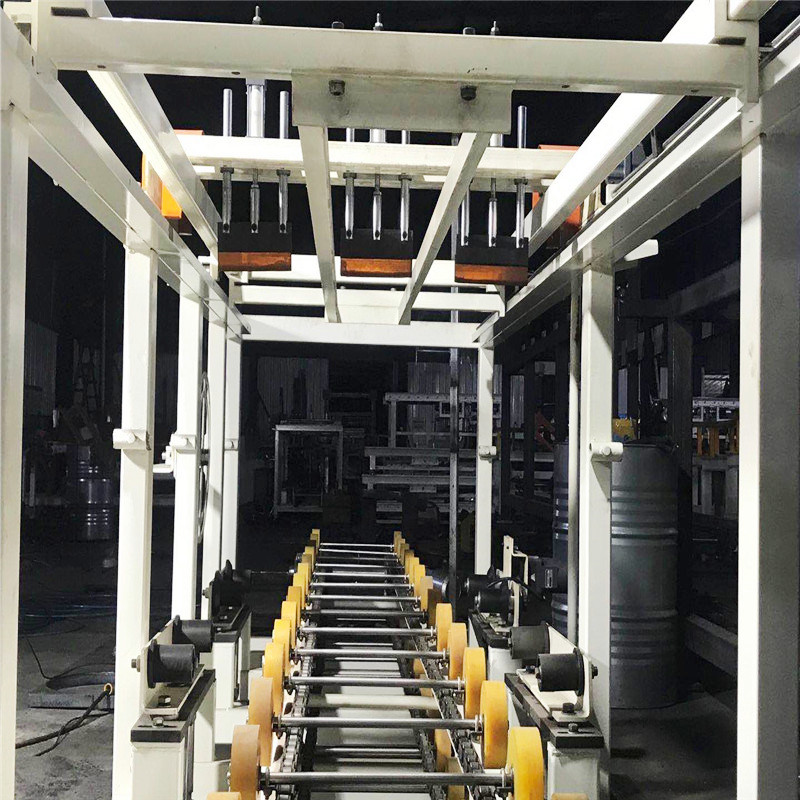

Automatic Steel Drum Screen Printing Machine

I.The purpose of designing this proposal:
Improve production efficiency, save labor, realize operation without or with fewer operator, and ensure stable and qualified printing effect.
II.Silk printing Technology Process:
The printing line is divided into four parts:

1) Drum Entry turnover machine,

2) Screen printing machine,

3) Drum exit turnover machine. (A, C turnover machine could change the conveying direction)

4) Welding seam positioner device

III.Technical parameter:

Voltage: 380V,50HZ.  Three-phase four-wire system
Total power: 4.5KW
Air pressure: 0.4---0.8KPa
Drum diameter: 500-600mm, adjustable.
Drum height: 100-400mm, adjustable.
Screen printing accuracy: ≤1mm.

IV. Features:
1: Cam-linkage mechanisms driving mode combined with PLC control system for effectively guarantee working stability, reliability,and most efficiency.
2: Reliability: Main components from Rexroth, SMC, Mitsubishi international brand. The machines hardware parts are made by CNC directly from CAD.
3: Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.
4: With PLC control system. Fast setup & quick tooling change over for customer's easy operation and adjustment.
5: Adopted with No-product- no print system, auto counter, safety alarm device.
6: Optional: Made based on the customer's special requirements. devices, antistatic dust removing device, extra set flame treatment, UV/IR system, auto scrambler system, offloading conveyor, offloading robot arm to have bottles stand up on the off conveyor belt and any other customizations due to order.
7:Electronic UV Curing System for mostly power rate saving, assuring the UV lamp's longest life span, adjustable UV identity from 20%-100%

VI. Advantages:
1: Lower noise and perfect working stability because of the mechanical driven
2: High precised and perfect registering double-color printing
3: Easy setting up for tooling change between oval, round and flat shape bottles and containers
4: equipped with electronic control UV curing system for adjust the UV density ranges from 0-100%
5: Much Higher Working Capacity
