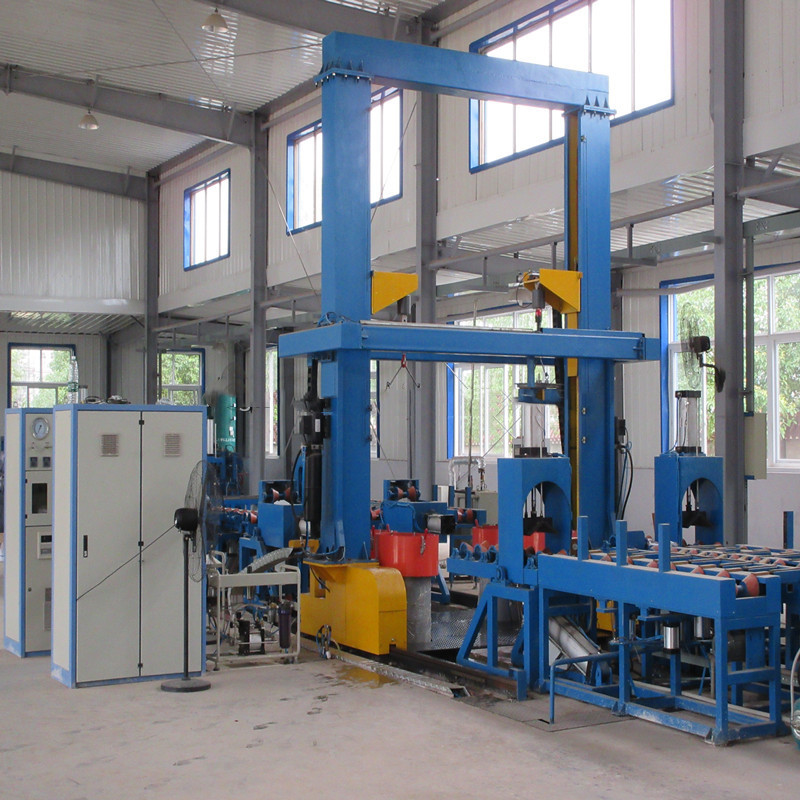

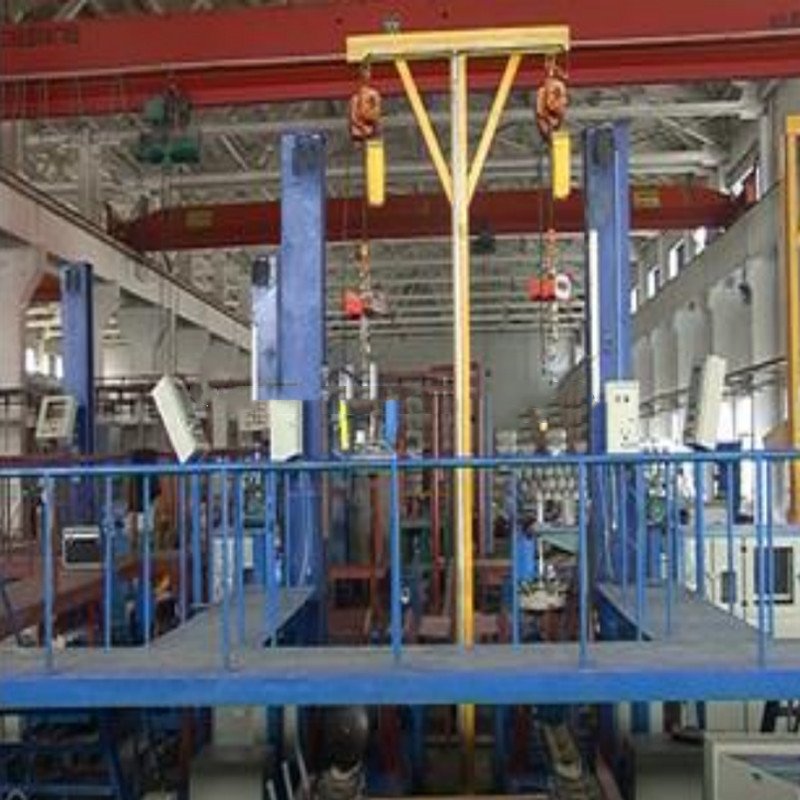

Automatic Gantry External Hydro-Static Testing Machine with Water Jacket Type
Product Introduction
(1) Equipment usage, working principle and characteristics
The external test method hydraulic test line is a test equipment used to detect the residual deformation rate of gas cylinders,including weighing, watering, testing (measurement of residual deformation rate), loading and unloading, water discharge, and drying.
The hydraulic test section of the pipeline should be automatically carried out by the computer controlled test process, and automatically complete the pressure increase (self-tightening pressure), pressure holding, pressure relief, pressure increase (water pressure test pressure), pressure holding, and pressure relief; through the computer Collect hydraulic test pressure data and pre-tightening pressure data, and automatically calculate the residual deformation rate. The entire hydraulic test process is automatically completed, and related test data and graphs can be stored.
Its working principle is: put the test bottle in a special water jacket, and use a high-pressure pump to pressurize the test bottle.
Specification
(1) On-site working environment
1. Relative humidity: ≤85%
2. Compressed air: 0.4~0.7MPa
3. Saturated steam: ≥140ºC, 0.5Mpa
4. Electricity: 415V±10% 50Hz±2Hz
5. The driving track height of the workshop: 7m
(2) Technical specifications and requirements
1. Production program and usage: 8 hours/shift, 2 shifts/day, 252 days/year.
2. Beat: 16-20 pcs/hour/set (including loading and unloading time, taking 65L steel gas cylinder as an example, holding pressure for 30s)
3. System design pressure: 50 MPa
4. Water pressure test pressure: 20~40MPa
5. Minimum resolution of residual deformation: 0.1g
6. Water volume measurement accuracy: ≤0.1ml
7. Gas cylinder weighing range: 600kg, accuracy of electronic scale: 200g
8. Accuracy of pressure sensor: 0.25%
9. Precision pressure gauge: 0.25 level (PSI, MPa double reading value) Working pressure gauge: 1.0 level
10. Saturated steam temperature/pressure: 150ºC/0.4-0.5MPa
Process flow

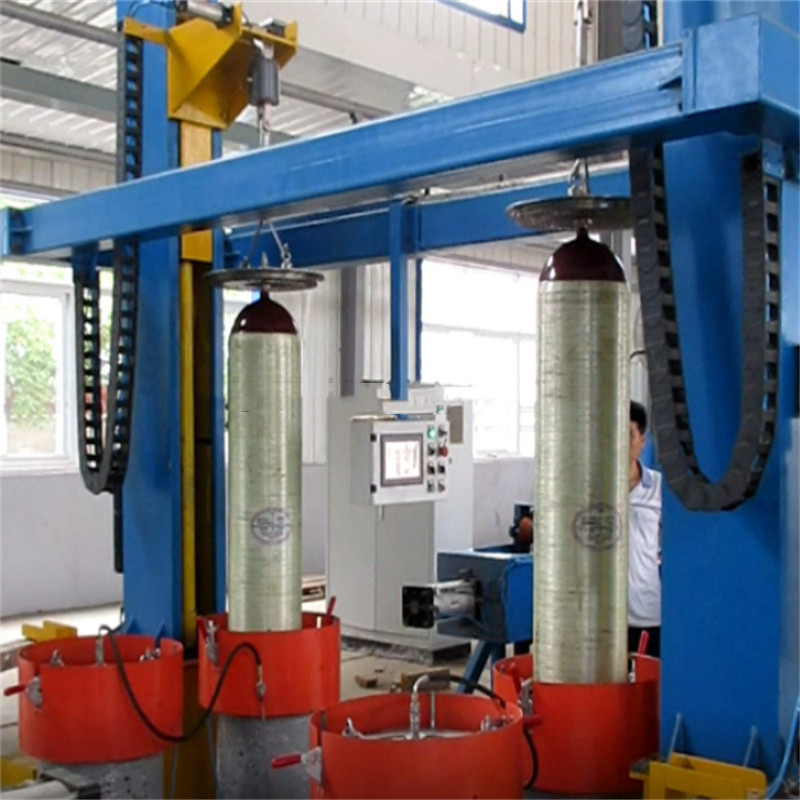

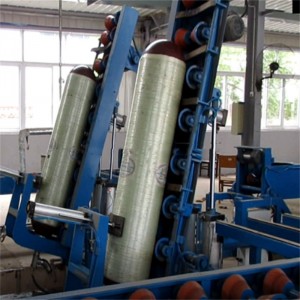

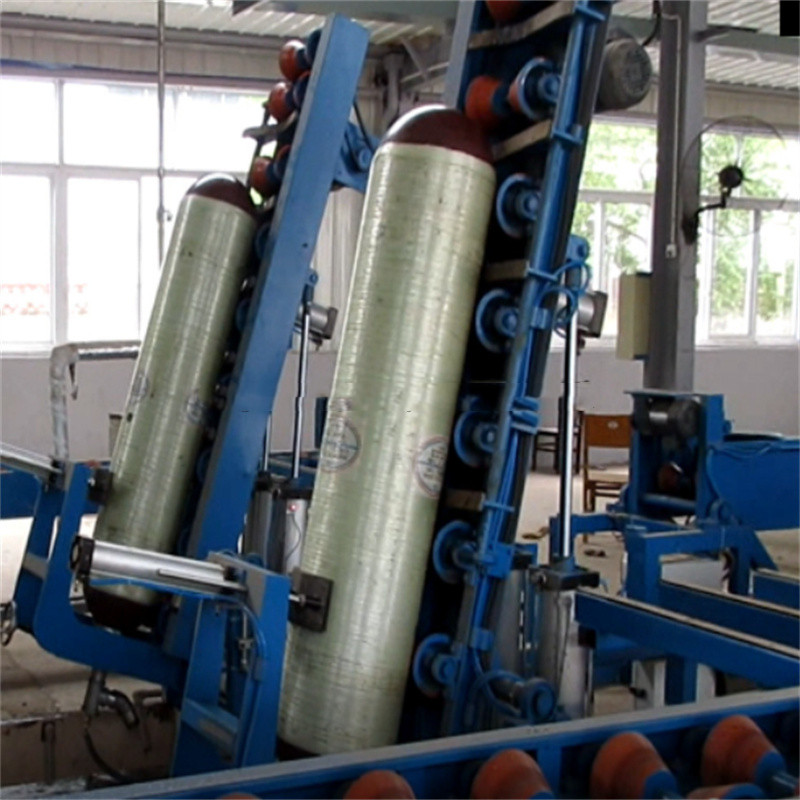

Feeding power conveying line---dynamic weighing of empty bottles---clamping and flipping---automatic filling---upper cap---full bottle hanging weighing and volume measurement---manual translation feeding-- -Automatically fall into the water jacket, automatic water replenishment and exhaust---Airbag automatic sealing---Hydraulic pressure test pressure, pressure retention, pressure relief, storage test results---Airbag automatic retraction, sealing release, automatic cylinder lifting- --Manually transfer to the unloading area---Unloading jacket cover---Clamping and turning rollers for conveying and feeding---Automatic water pouring and drying (compressed air steam source and pipe valve are provided by the buyer)---Out Material power conveyor line.

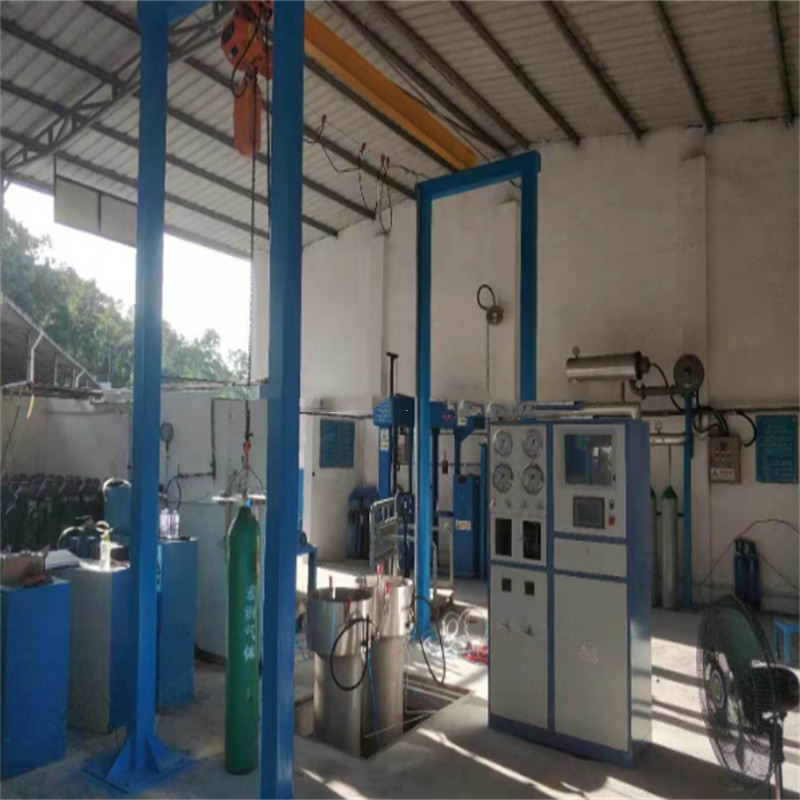

Expansion online testing machine
Testing pressure:0~60MPa(adjustable)
Testing efficiency:16~20pcs/hour
(2 main engine,four water jacket,50L CNG cylinder as a example)
Working air source pressure:0.6~1.0MPa;
Working gas source flow:1.5 m3/min;
Water volume measurement accuracy:≤0.1g;
External power supply voltage:220V /50Hz;
Internal pressure sealed threaded joint;
Working medium:water;
Max design pressure:60MPa;
Pressure increasing rate:≥0.25MPa/s
Test screen display
1. The relevant data of the tested gas cylinder, the batch number of the tested gas cylinder, the factory number, the nominal working pressure, the hydraulic test pressure, the volume of the gas cylinder, and the date of manufacture;
2. Test date;
3. Temperature of test water;
4. Pressure-time curve of the tested gas cylinder;
5. The actual volume of the tested gas cylinder;
6. The total deformation of the tested gas cylinder;
7. The volumetric residual deformation rate of the tested gas cylinder
